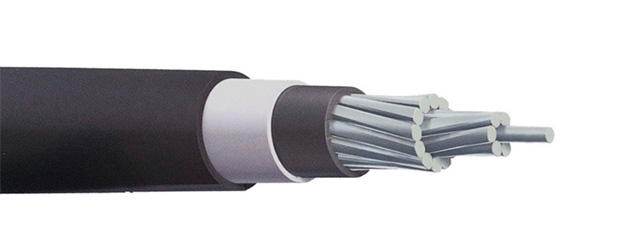

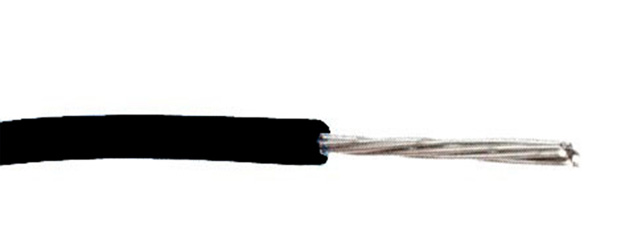

Aluminum Conductor Aluminum - Clad Steel Reinforced XLPE Insulated Wire (ACSR/AW-OC)
Use
This is an insulated wire used in high-voltage and
extra-high-voltage processing lines, and is particularly durable as the center wire is made of aluminum-clad steel core.
Applicable Standards
KEPCO standard
| Class | Nominal Sectional Area(㎟) |
Conductor | Minimum Insulation Resistance (㏁·㎞) |
Insulation Thickness (㎜) |
Overall Diameter (㎜) |
Conductor Resistance (Ω/㎞) |
Test Voltage (㎸/1min) |
Conductor Tensile Load (㎏f) |
Approx Weight (㎏/㎞) |
Standard Length (m) |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| No. of AI Strand(No.)/Shape | No. of Steel Wire and Wire Strand/Diameter(No./㎜) | Outer Diameter (㎜) |
||||||||||
| 6.6㎸ | 32 | 6/SB | 1/2.6 | 7.2 | 1500 | 2.0 | 11.2 | 0.877 | 12 | 1090 | 180 | 600 |
| 58 | 6/SB | 1/3.5 | 9.7 | 1500 | 2.5 | 14.7 | 0.484 | 12 | 1900 | 315 | 600 | |
| 95 | 6/SB | 1/3.5 | 12.0 | 1000 | 2.5 | 17.0 | 0.302 | 12 | 2360 | 445 | 600 | |
| 22.9㎸ | 32 | 6/SB | 1/2.6 | 7.2 | 2000 | 3.0 | 13.2 | 0.877 | 25 | 1090 | 210 | 600 |
| 58 | 6/SB | 1/3.5 | 9.7 | 1500 | 3.0 | 15.7 | 0.484 | 25 | 1900 | 330 | 600 | |
| 95 | 6/SB | 1/3.5 | 12.0 | 1500 | 3.5 | 19.0 | 0.302 | 25 | 2360 | 530 | 600 | |
| 160 | 18/SB | 1/3.2 | 15.4 | 1500 | 4.0 | 23.4 | 0.183 | 25 | 3080 | 730 | 600 | |
| 240 | 18/SB | 1/4.0 | 18.9 | 1000 | 4.0 | 27.0 | 0.123 | 25 | 4500 | 1040 | 600 | |
Tree Retardant XLPE Insulated Wire (ACSR/AW-TR/OC)
Usa
It is a single-core, tracking-suppressing, watertight aluminum-clad, steel-core aluminum-insulated wire used in extra-high voltage overhead distribution lines, and is extremely durable. It is mainly used in coastal areas, industrial areas and mountainous areas.
Applicable Standards
KEPCO standard
| Class | Nominal Sectional Area(㎟) |
Conductor | Minimum Insulation Resistance (㏁·㎞) |
Insulation Thickness (㎜) |
Overall Diameter (㎜) |
Conductor Resistance (Ω/㎞) |
Test Voltage (㎸/1min) |
Conductor Tensile Load (㎏f) |
Approx Weight (㎏/㎞) |
Standard Length (m) |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| No. of AI Strand(No.)/Shape | No. of Steel Wire and Wire Strand/Diameter(No./㎜) | Outer Diameter (㎜) |
||||||||||
| 22.9㎸ | 58 | 6/SB | 1/3.5 | 9.7 | 0.6 | 1.2 | 15.7 | 0.484 | 25 | 1900 | 360 | 600 |
| 95 | 6/SB | 1/3.5 | 12.0 | 0.6 | 1.4 | 19.0 | 0.302 | 25 | 2360 | 520 | 600 | |
| 160 | 18/SB | 1/3.2 | 15.4 | 0.6 | 1.7 | 23.4 | 0.183 | 25 | 3080 | 750 | 600 | |
| 240 | 18/SB | 1/4.0 | 18.9 | 0.6 | 1.7 | 27.0 | 0.123 | 25 | 4500 | 1040 | 600 | |

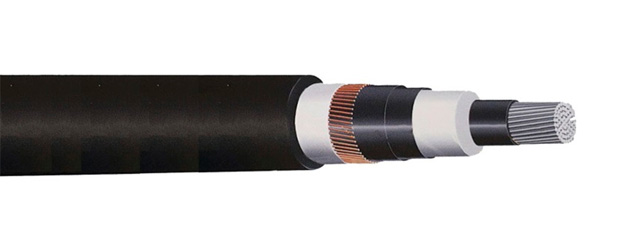

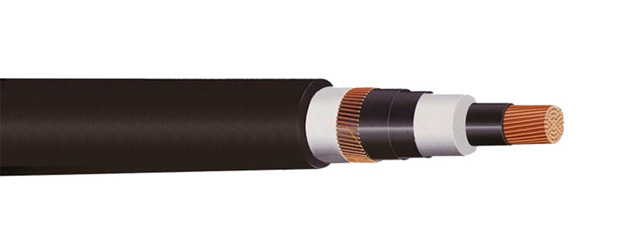

22.9㎸ XLPE Insulated, Concentric Neutral Wire Shilded, Low Smoke Zero Halogen(HFPO) Sheatheded, Water-proof Type Power Cable (FR CNCO-W)
Use
It is a neutral wire for industrial and commercial use, used in 3-phase 4-wire distribution lines with direct grounding or multi-grounding. It has excellent moisture penetration blocking performance and boasts excellent flame retardancy, making it suitable for places requiring flame retardant performance such as power lines, utility lines, substations, and buildings.
Applicable Standards
KEPCO standard
| Conductor | Insulation Thickness (㎜) |
Sheath Thickness (㎜) |
Overall Diameter (㎜) |
Maximum Conductor Resistance (Ω/㎞) |
Minimum Conductor Resistance( (㏁·㎞) |
||
|---|---|---|---|---|---|---|---|
| Nominal Sectional Area (㎟) |
Construction Shape | Outer Diameter (㎜) |
|||||
| 38 | Circular compressed stranded wire | 7.3 | 6.6 | 3.0 | 34 | 0.481 | 3500 |
| 60 | Circular compressed stranded wire | 9.3 | 6.6 | 3.0 | 36 | 0.305 | 3000 |
| 100 | Circular compressed stranded wire | 12.0 | 6.6 | 3.0 | 40 | 0.183 | 2500 |
| 150 | Circular compressed stranded wire | 14.7 | 6.6 | 3.0 | 43 | 0.122 | 2000 |
| 200 | Circular compressed stranded wire | 17.0 | 6.6 | 3.0 | 45 | 0.0915 | 2000 |
| 250 | Circular compressed stranded wire | 19.0 | 6.6 | 3.0 | 51 | 0.0568 | 2000 |
| 325 | Circular compressed stranded wire | 21.7 | 6.6 | 3.0 | 51 | 0.0568 | 2000 |
| 400 | Circular compressed stranded wire | 24.1 | 6.6 | 3.0 | 54 | 0.0462 | 1500 |
| 500 | Circular compressed stranded wire | 26.9 | 6.6 | 3.0 | 57 | 0.0369 | 1500 |
| 600 | Circular compressed stranded wire | 29.5 | 6.6 | 4.0 | 61 | 0.0308 | 1500 |

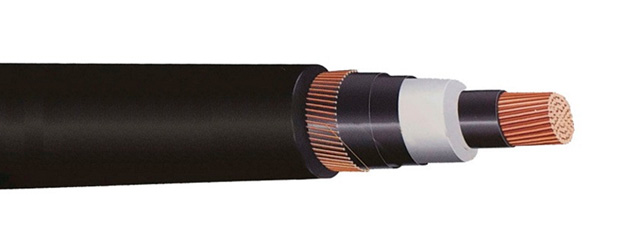

22.9㎸ Concentric Neutral Type Water Tree Retardant XLPE Insulated Halogen free Polyolefin(HEPO) Jacketed Water-proof Power Aluminum Cable (FR CNCO-W/AL)
Use
It is a neutral wire for industrial and commercial use, used in 3-phase 4-wire distribution lines with direct grounding or multi-grounding. It has excellent moisture penetration blocking performance and boasts excellent flame retardancy, making it suitable for places requiring flame retardant performance such as power lines, utility lines, substations, and buildings.
Applicable Standards
KEPCO standard
| Conductor | Insulation Thickness (㎜) |
Sheath Thickness(㎜) (㎜) |
Mean Overall Diameter (㎜) |
Maximum Conductor Resistance (Ω/㎞) |
Minimum Conductor Resistance (㏁·㎞) |
||
|---|---|---|---|---|---|---|---|
| Nominal Sectional Area (㎟) |
Construction Shape | Outer Diameter (㎜) |
|||||
| 95 | C.C | 11.4 | 6.8 | 1.5 | 34.6 | 0.320 | 3000 |
| 240 | C.C | 18.3 | 6.8 | 1.5 | 43.8 | 0.125 | 2000 |
| 420 | C.C | 23.2 | 6.8 | 2.4 | 50.7 | 0.0778 | 2000 |

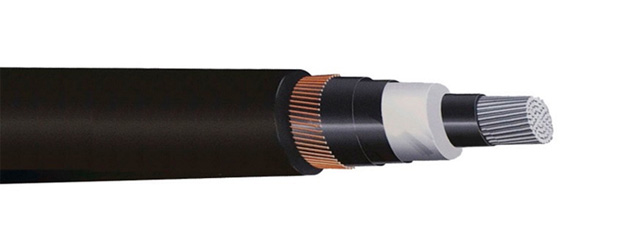

22.9㎸ Concentric Neutral Type Water Tree Retardant XLPE Insulated Extruded-to-Fill Polyethylene Jacketed Water-proof Power Cable (TR CNCE-W)
Use
It is a neutral wire for industrial and commercial use, used in 3-phase 4-wire distribution lines with direct grounding or multi-grounding. For its excellent moisture penetration blocking performance, it is suitable for places exposed to moisture.
Applicable Standards
KEPCO standard or Standard specifications of YUJINTECHNO
| Conductor | nsulation Thickness (㎜) |
Sheath Thickness( (㎜) |
Overall Diameter (㎜) |
Maximum Conductor Resistance (Ω/㎞) |
Minimum Insulation Resistance (㏁·㎞) |
Insulating Layer Outer Diameter (㎜) |
||
|---|---|---|---|---|---|---|---|---|
| Nominal Sectional Area (㎟) |
Construction Shape | Outer Diameter (㎜) |
||||||
| 60 | Circular compressed stranded wire | 9.3 | 6.80 | 1.5 | 35 | 0.305 | 3000 | Maximum 22.34 Minimum 24.63 |
| 200 | Circular compressed stranded wire | 17.0 | 6.80 | 1.5 | 45 | 0.0915 | 2000 | Maximum 30.26 Minimum 32.61 |
| 325 | Circular compressed stranded wire | 21.7 | 6.80 | 2.4 | 53 | 0.0568 | 2000 | Maximum 35.16 Minimum 37.56 |
| 600 | Circular compressed stranded wire | 29.5 | 6.80 | 2.4 | 62 | 0.0308 | 1500 | Maximum 43.16 Minimum 45.61 |
22.9㎸ Concentric Neutral Type Water Tree Retardant XLPE Insulated Extruded-to-Fill Polyethylene Jacketed Water-proof Power Cable (TR CNCE-W)(TR CNCE-W/AL)
Use
It is a neutral wire for industrial and commercial use, used in 3-phase 4-wire distribution lines with direct grounding or multi-grounding.For its excellent moisture penetration blocking performance, it is suitable for places exposed to moisture.
Applicable Standards
KEPCO standard or Standard specifications of YUJINTECHNO
| Conductor | Insulation Thickness( (㎜) |
Sheath Thickness (㎜) |
Overall Diameter (㎜) |
Maximum Conductor Resistance( (Ω/㎞) |
Minimum Insulation Resistance (㏁·㎞) |
Insulating Layer Outer Diameter (㎜) |
||
|---|---|---|---|---|---|---|---|---|
| Nominal Sectional Area (㎟) |
Construction Shape | External diameter (㎜) |
||||||
| 95 | Circular compressed stranded wire | 11.4 | 6.80 | 1.5 | 34.6 | 0.320 | 3000 | 26.24 |
| 240 | Circular compressed stranded wire | 18.3 | 6.80 | 1.5 | 43.8 | 0.125 | 2000 | 33.92 |
| 400 | Circular compressed stranded wire | 23.2 | 6.80 | 2.4 | 50.7 | 0.0778 | 2000 | 38.07 |

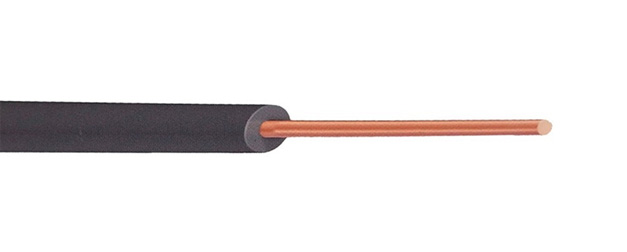

22.9㎸ Drop Wire for Pole Transformer (Sol - P.D.C)
Use
It is a 22.9㎸ high-voltage reduction XLPE insulated wire, and Sol-P.D.C OC 5MM allowable current (115A).This is a wire used to connect the primary side of a pole transformer in high-voltage and extra high-voltage overhead lines.
Applicable Standards
KEPCO standard or Standard specifications of YUJINTECHNO
| Conductor | Insulation Thickness (㎜) |
Sheath Thickness( (㎜) |
Overall Diameter (㎜) |
Maximum Conductor Resistance (Ω/㎞) |
Test Voltage (V/1min) |
Minimum Insulation Resistance (㏁·㎞) |
Standard Length (m) |
||
|---|---|---|---|---|---|---|---|---|---|
| Nominal Sectional Area (㎟) |
No. of Strand/Strand Diameter(No./㎜) | Outer Diameter (㎜) |
|||||||
| - | 2.0 | 2.0 | 3.0 | - | 8.0 | 5.65 | 12000 | 2500 | 300 |
| - | 2.6 | 2.6 | 3.0 | - | 8.6 | 3.35 | 12000 | 2500 | 300 |
| - | 3.2 | 3.2 | 3.0 | - | 9.2 | 2.21 | 12000 | 2500 | 300 |
| - | 5.0 | 5.0 | 4.0 | - | 13.0 | 0.905 | 25000 | 4000 | 300 |
| 5.5 | 7/0.7 | 3.0 | 3.0 | - | 9.0 | 3.33 | 12000 | 4000 | 300 |
| 8 | 7/1.2 | 3.6 | 3.0 | - | 9.6 | 2.31 | 12000 | 2500 | 300 |
| 14 | 7/1.6 | 4.8 | 3.0 | - | 11.0 | 1.30 | 12000 | 2500 | 300 |
| 22 | 7/22.0 | 6.0 | 3.0 | - | 12.0 | 0.824 | 12000 | 2500 | 300 |
| 30 | 7/2.3 | 6.9 | 3.0 | - | 13.0 | 0.623 | 12000 | 2500 | 300 |
PVC Insulated Drop Service Wire (DV)
Use
It is mainly used as a service drop of AC 600V or less. It is a PVC insulated wire, so it has excellent weather resistance and durability and can be used safely for a long time without fire or electric shock accidents.
Applicable Standards
Standard specifications of YUJINTECHNO

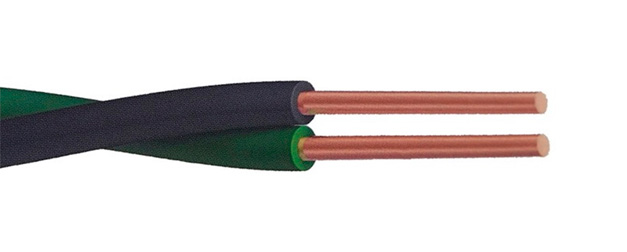

2-wire cable Duplex (DV-2R) KS C : 3315
| Conductor | Insulation Thickness (㎜) |
Overall Diameter (㎜) |
Conductor Resistance (Ω/㎞) |
Test Voltage (V/1min) |
Insulation Resistance( (㏁·㎞) |
Minimum Tensile Load (㎏f) |
Approx. Weight (㎏/㎞) |
Standard Length (m) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Sectional Area (㎟) |
No. of Strand/Strand Diameter | Outer Diameter (㎜) |
Between conductors (In air) |
onductor to groCund (Underwater) |
20℃ | 60℃ | ||||||
| - | 2.0 | 2.0 | 0.8 | 7.2 | 5.89 | 3.0 | 1.5 | 50 | 0.15 | 127 | 75 | 300 |
| - | 2.6 | 2.6 | 1.0 | 9.2 | 3.48 | 3.0 | 1.5 | 50 | 0.15 | 211 | 125 | 200 |
| - | 3.2 | 3.2 | 1.2 | 11.5 | 2.30 | 3.0 | 1.5 | 50 | 0.15 | 326 | 190 | 200 |
| 8 | 7/1.2 | 3.6 | 1.2 | 12.0 | 2.46 | 3.0 | 1.5 | 50 | 0.15 | 326 | 205 | 300 |
| 14 | 7/1.6 | 4.8 | 1.4 | 15.5 | 1.38 | 3.0 | 1.5 | 40 | 0.1 | 574 | 340 | 300 |
| 22 | 7/2.0 | 6.0 | 1.6 | 18.5 | 0.832 | 4.0 | 1.5 | 40 | 0.1 | 418 | 525 | 300 |
| *30 | 7/2.3 | 6.9 | 1.6 | 21.0 | 0.623 | 4.0 | 1.5 | 40 | 0.1 | 570 | 680 | 300 |
| 38 | 7/2.6 | 7.8 | 1.8 | 23.0 | 0.492 | 4.0 | 1.5 | 40 | 0.1 | 722 | 860 | 300 |
| *50 | 19/1.8 | 9.0 | 1.8 | 26.0 | 0.382 | 4.0 | 1.5 | 30 | 0.1 | 900 | 1100 | 300 |

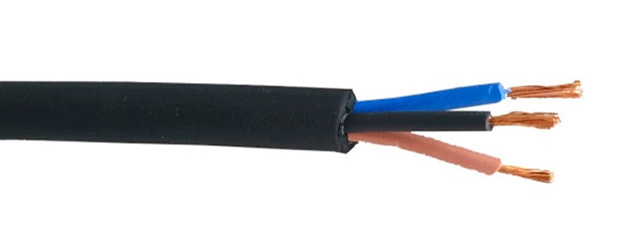

3-wire cable Triplex (DV-3R)
| Conductor | Insulation Thickness (㎜) |
Overall Diameter (㎜) |
Conductor Resistance( (Ω/㎞) |
Test Voltage (V/1min) |
Insulation Resistance (㏁·㎞) |
Minimum Tensile Load (㎏f) |
Approx. Weight( (㎏/㎞) |
Standard Length이 (m) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Sectional Area (㎟) |
No. of Strand/Strand Diameter (No./㎜) |
Outer Diameter (㎜) |
Between conductors (In air) |
onductor to groCund (Underwater) |
20℃ | 60℃ | ||||||
| - | 2.0 | 2.0 | 0.8 | 7.8 | 5.89 | 3.0 | 1.5 | 55 | 0.2 | 127 | 115 | 300 |
| - | 2.6 | 2.6 | 1.0 | 9.9 | 3.48 | 3.0 | 1.5 | 55 | 0.2 | 211 | 190 | 200 |
| - | 3.2 | 3.2 | 1.2 | 12.5 | 2.30 | 3.0 | 1.5 | 55 | 0.2 | 316 | 285 | 200 |
| 8 | 7/1.2 | 3.6 | 1.2 | 13.0 | 2.46 | 3.0 | 1.5 | 55 | 0.2 | 326 | 310 | 300 |
| 14 | 7/1.6 | 4.8 | 1.4 | 16.5 | 1.38 | 3.0 | 2.0 | 45 | 0.15 | 574 | 510 | 300 |
| 22 | 7/2.0 | 6.0 | 1.6 | 20.0 | 0.832 | 4.0 | 2.0 | 45 | 0.15 | 418 | 785 | 300 |
| *30 | 7/2.3 | 6.9 | 1.6 | 22.0 | 0.623 | 4.0 | 2.0 | 45 | 0.15 | 570 | 1025 | 300 |
| 38 | 7/2.6 | 7.8 | 1.8 | 25.0 | 0.492 | 4.0 | 2.0 | 45 | 0.15 | 722 | 1290 | 300 |
| *50 | 19/1.8 | 9.0 | 1.8 | 28.0 | 0.382 | 4.0 | 2.0 | 35 | 0.15 | 900 | 1650 | 300 |

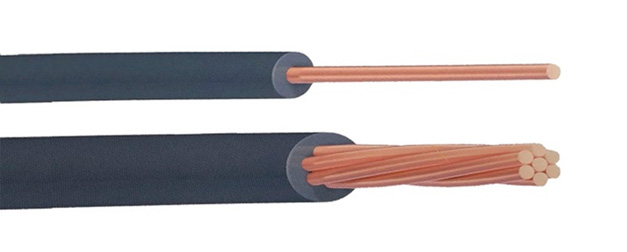

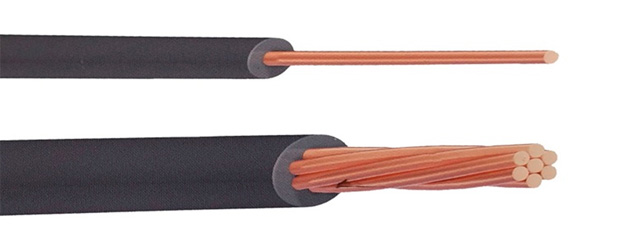

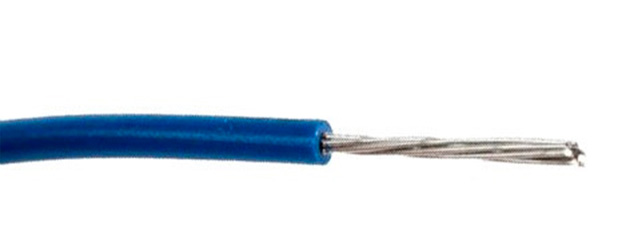

450/750V Insulated Wire (IV)
Use
It is used for fixed wiring with a rated voltage of 450/750V or less, and is widely distributed as it has good weather resistance and durability..
Applicable Standards
Standard specifications of YUJINTECHNO
| Conductor | nsulation Thickness (㎜) |
Overall Diameter (Maximum Value) (㎜) |
Conductor Resistance (Ω/㎞) |
Test Voltage( (V/1min) |
Minimum Insulation Resistance (㏁·㎞) |
Approx. Weight (㎏/㎞) |
Standard Length (m) |
||
|---|---|---|---|---|---|---|---|---|---|
| Nominal Sectional Area (㎟) |
No. of Strand/Strand Diameter (No./㎜) |
Outer Diameter (㎜) |
|||||||
| 1.5 | 1/1.38 | 1.38 | 0.7 | 3.2 | 12.1 | 2500 | 0.011 | 24 | 300 |
| 7/0.53 | 1.59 | 0.7 | 3.3 | 12.1 | 2500 | 0.010 | 25 | 300 | |
| 2.5 | 1/1.78 | 1.78 | 0.8 | 3.9 | 7.41 | 250 | 0.010 | 34 | 300 |
| 7/0.67 | 2.01 | 0.8 | 4.0 | 7.41 | 2500 | 0.009 | 35 | 300 | |
| 4 | 1/2.25 | 2.25 | 0.8 | 4.4 | 4.61 | 2500 | 0.0085 | 50 | 300 |
| 7/0.82 | 2.55 | 0.8 | 4.6 | 4.61 | 2500 | 0.0077 | 55 | 300 | |
| 6 | 1/2.76 | 2.76 | 0.8 | 5.0 | 3.08 | 2500 | 0.0070 | 70 | 300 |
| 7/1.04 | 3.12 | 0.8 | 5.2 | 3.08 | 2500 | 0.0065 | 75 | 300 | |
| 10 | 1/3.57 | 3.57 | 1.0 | 6.4 | 1.83 | 2500 | 0.0070 | 115 | 300 |
| 7/1.35 | 4.05 | 1.0 | 6.7 | 1.83 | 2500 | 0.0065 | 120 | 300 | |
| 16 | Circular compressed stranded wire | 4.7 | 1.0 | 7.8 | 1.15 | 2500 | 0.0050 | 170 | 300 |
| 25 | Circular compressed stranded wire | 5.9 | 1.2 | 9.7 | 0.727 | 2500 | 0.0050 | 270 | 300 |
| 35 | Circular compressed stranded wire | 6.9 | 1.2 | 10.9 | 0.524 | 2500 | 0.0043 | 370 | 300 |
| 50 | Circular compressed stranded wire | 8.1 | 1.4 | 12.8 | 0.387 | 2500 | 0.0043 | 510 | - |
| 70 | Circular compressed stranded wire | 9.8 | 1.4 | 14.6 | 0.268 | 2500 | 0.0035 | 685 | - |
| 95 | Circular compressed stranded wire | 11.5 | 1.6 | 17.1 | 0.193 | 2500 | 0.0035 | 935 | - |
| 120 | Circular compressed stranded wire | 12.9 | 1.6 | 18.8 | 0.153 | 2500 | 0.0032 | 1170 | - |
| 150 | Circular compressed stranded wire | 14.4 | 1.8 | 20.9 | 0.124 | 2500 | 0.0032 | 1450 | - |
| 185 | Circular compressed stranded wire | 15.9 | 2.0 | 23.3 | 0.0991 | 2500 | 0.0032 | 1820 | - |
| 240 | Circular compressed stranded wire | 18.3 | 2.2 | 26.6 | 0.0754 | 2500 | 0.0032 | 2305 | - |
| 300 | Circular compressed stranded wire | 20.5 | 2.4 | 29.6 | 0.0601 | 2500 | 0.0030 | 2925 | - |
| 400 | Circular compressed stranded wire | 23.2 | 2.6 | 33.2 | 0.0470 | 2500 | 0.0028 | 3820 | - |

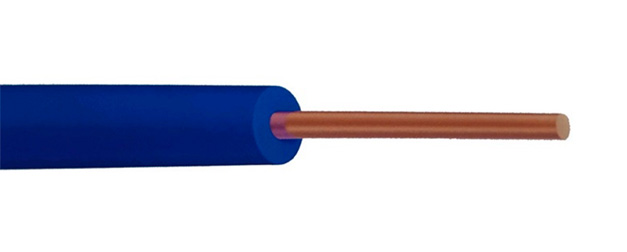

300/500V Heat-Resistant PVC Insulated Wire : 90℃ (HIV)
Use
This is a PVC wire mainly used for wiring of general electrical workpieces or electrical devices of 300/500V or less, and is a wire insulated with PVC with added heat-resistant plasticizer.
Applicable Standards
Standard specifications of YUJINTECHNO
| Conductor | Insulation Thickness (㎜) |
Mean Overall Diameter (㎜) |
Maximum Conductor Resistance (Ω/㎞) |
Minimum Conductor Resistance (㏁·㎞) |
Test Voltage (V/1min) |
Approx. Weight (㎏/㎞) |
||
|---|---|---|---|---|---|---|---|---|
| Nominal Sectional Area (㎟) |
Class | Lower Limit | Upper Limit | |||||
| 1.5 | 1 | 0.7 | 2.6 | 3.2 | 12.1 | 0.011 | 2.0 | 20 |
| 2.5 | 1 | 0.8 | 3.2 | 3.9 | 7.41 | 0.009 | 2.0 | 32 |
450/750V Halogen Free Flame Retardant Polyolefin Insulated Wire (HIFX)
Use
It is used for indoor fixed wiring with a rated voltage of 450/750V or less, and is an insulated wire made of halogen free flame retardant polyolefin used for wiring general electrical workpieces or electrical devices.
Applicable Standards
Standard specifications of YUJINTECHNO
| Nominal Sectional Area (㎟) |
Conductor Class (㎜) |
Insulation Thickness (㎜) |
Overall Diameter | Conductor Resistance (Ω/㎞) |
Test Voltage (V/1min) |
|
|---|---|---|---|---|---|---|
| Lower Limit (㎜) |
Upper Limit (㎜) |
|||||
| 1.5 | 1 | 0.7 | 2.6 | 3.3 | 12.1 | 2.5 |
| 2 | 0.7 | 2.7 | 3.4 | 12.1 | 2.5 | |
| 2.5 | 1 | 0.8 | 3.2 | 4.0 | 7.41 | 2.5 |
| 2 | 0.8 | 3.3 | 4.1 | 7.41 | 2.5 | |
| 4 | 1 | 0.8 | 3.6 | 4.6 | 4.61 | 2.5 |
| 2 | 0.8 | 3.8 | 4.7 | 4.61 | 2.5 | |
| 6 | 1 | 0.8 | 4.1 | 5.2 | 3.08 | 2.5 |
| 2 | 0.8 | 4.3 | 5.4 | 3.08 | 2.5 | |
| 10 | 1 | 1.0 | 5.3 | 6.6 | 1.83 | 2.5 |
| 2 | 1.0 | 5.6 | 7.0 | 1.83 | 2.5 | |
| 16 | 2 | 1.0 | 6.4 | 8.0 | 1.15 | 2.5 |
| 25 | 2 | 1.2 | 8.1 | 10.1 | 0.727 | 2.5 |
| 35 | 2 | 1.2 | 9.0 | 11.3 | 0.524 | 2.5 |
| 50 | 2 | 1.4 | 10.6 | 13.2 | 0.387 | 2.5 |
| 70 | 2 | 1.4 | 12.1 | 15.1 | 0.268 | 2.5 |
| 95 | 2 | 1.6 | 14.1 | 17.6 | 0.193 | 2.5 |
| 120 | 2 | 1.6 | 15.6 | 19.4 | 0.153 | 2.5 |
| 150 | 2 | 1.8 | 17.3 | 21.6 | 0.124 | 2.5 |
| 185 | 2 | 2.0 | 19.3 | 24.1 | 0.0991 | 2.5 |
| 240 | 2 | 2.2 | 22.0 | 27.5 | 0.0754 | 2.5 |
| 300 | 2 | 2.4 | 24.5 | 30.6 | 0.0601 | 2.5 |

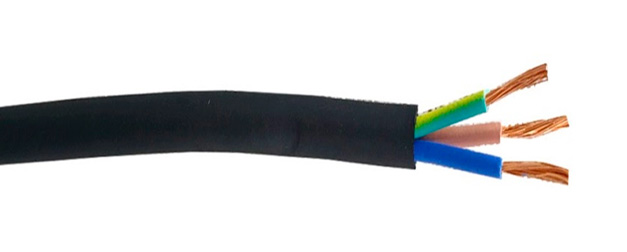

300/500V General Purpose Chloroprene, Synthetic Rubber Sheathed Code (IEC 57)
Use
It is a flexible rubber cable with 2 to 5 cores for power supply of household or portable electrical appliances of AC 300/500V or less, and maintains flexibility at sub-zero temperatures. It is mainly used for home or office use.
Applicable Standards
tandard specifications of YUJINTECHNO
| No. of Cores (No.) |
Conductor | Insulation Thickness (㎜) |
Sheath Thickness (㎜) |
Overall Diameter (㎜) |
Conductor Resistance | Insulation Resistance (㏁·㎞) |
Approx. Weight (㎏/㎞) |
|||
|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Sectional Area (㎟) |
Maximum Strand Diameter (㎜) |
Outer Diameter (㎜) |
Not plated (Ω/㎞) |
Plated (Ω/㎞) |
||||||
| 2 | 0.75 | 0.21 | 1.1 | 0.6 | 0.8 | 6.5 | 26.0 | 26.7 | 400 | 60 |
| 1.0 | 0.21 | 1.3 | 0.6 | 0.9 | 7.0 | 19.5 | 20.0 | 400 | 70 | |
| 1.5 | 0.26 | 1.6 | 0.8 | 1.0 | 8.5 | 13.3 | 13.7 | 400 | 110 | |
| 2.5 | 0.26 | 2.1 | 0.9 | 1.1 | 10.0 | 7.98 | 8.21 | 400 | 150 | |
| 3 | 0.75 | 0.21 | 1.1 | 0.6 | 0.9 | 7.0 | 26.0 | 26.7 | 400 | 70 |
| 1.0 | 0.21 | 1.3 | 0.6 | 0.9 | 7.5 | 19.5 | 20.0 | 400 | 90 | |
| 1.5 | 0.26 | 1.6 | 0.8 | 1.0 | 9.0 | 13.3 | 13.7 | 400 | 160 | |
| 2.5 | 0.26 | 2.1 | 0.9 | 1.1 | 11.0 | 7.98 | 8.21 | 400 | 190 | |
| 4 | 0.75 | 0.21 | 1.1 | 0.6 | 0.9 | 7.5 | 26.0 | 26.7 | 400 | 90 |
| 1.0 | 0.21 | 1.3 | 0.6 | 1.0 | 8.0 | 19.5 | 20.0 | 400 | 110 | |
| 1.5 | 0.26 | 1.6 | 0.8 | 1.1 | 10.0 | 13.3 | 13.7 | 400 | 160 | |
| 2.5 | 0.26 | 2.1 | 0.9 | 1.2 | 12.0 | 7.98 | 8.21 | 400 | 230 | |
| 5 | 0.75 | 0.21 | 1.1 | 0.6 | 1.0 | 9.0 | 26.0 | 26.7 | 400 | 120 |
| 1.0 | 0.21 | 1.3 | 0.6 | 1.0 | 9.5 | 19.5 | 20.0 | 400 | 140 | |
| 1.5 | 0.26 | 1.6 | 0.8 | 1.1 | 11.5 | 13.3 | 13.7 | 400 | 200 | |
| 2.5 | 0.26 | 2.1 | 0.9 | 1.3 | 13.5 | 7.98 | 8.21 | 400 | 300 | |
450/750V Rigid Chloroprene, Synthetic Rubber Sheathed Flexible Cable (IEC 66)
Use
It is a cable with power supply cables with rated voltages of 450/750V, and provides high flexibility. It is particularly suitable for use in industrial environments with cold and frozen environments as it maintains flexibility even in sub-zero temperatures. It is mainly used indoors and outdoors.
Applicable Standards
Standard specifications of YUJINTECHNO
| No. of Cores (No.) |
Conductor | Insulation Thickness (㎜) |
Sheath Thickness( (㎜) |
Overall Diameter (㎜) |
Conductor Resistance | Approx. Weight (㎏/㎞) |
|||
|---|---|---|---|---|---|---|---|---|---|
| Nominal Sectional Area (㎟) |
Maximum Strand Diameter (㎜) |
Outer Diameter (㎜) |
Not plated (Ω/㎞) |
Plated (Ω/㎞) |
|||||
| 2 | 1.0 | 0.21 | 1.3 | 0.8 | 1.3 | 8.5 | 19.5 | 20.0 | 100 |
| 1.5 | 0.26 | 1.6 | 0.8 | 1.5 | 9.5 | 13.3 | 13.7 | 130 | |
| 2.5 | 0.26 | 2.1 | 0.9 | 1.7 | 11.5 | 7.98 | 8.21 | 180 | |
| 3 | 1.0 | 0.21 | 1.3 | 0.8 | 1.4 | 9.5 | 19.5 | 20.0 | 120 |
| 1.5 | 0.26 | 1.6 | 0.8 | 1.6 | 10.5 | 13.3 | 13.7 | 150 | |
| 2.5 | 0.26 | 2.1 | 0.9 | 1.8 | 12.5 | 7.98 | 8.21 | 220 | |
| 4 | 1.0 | 0.21 | 1.3 | 0.8 | 1.5 | 10.5 | 19.5 | 20.0 | 150 |
| 1.5 | 0.26 | 1.6 | 0.8 | 1.7 | 11.5 | 13.3 | 13.7 | 190 | |
| 2.5 | 0.26 | 2.1 | 0.9 | 1.9 | 13.5 | 7.98 | 8.21 | 270 | |
| 5 | 1.0 | 0.21 | 1.3 | 0.8 | 1.6 | 12.0 | 19.5 | 20.0 | 200 |
| 1.5 | 0.26 | 1.6 | 0.8 | 1.8 | 13.0 | 13.3 | 13.7 | 240 | |
| 2.5 | 0.26 | 2.1 | 0.9 | 2.0 | 15.0 | 7.98 | 8.21 | 350 | |

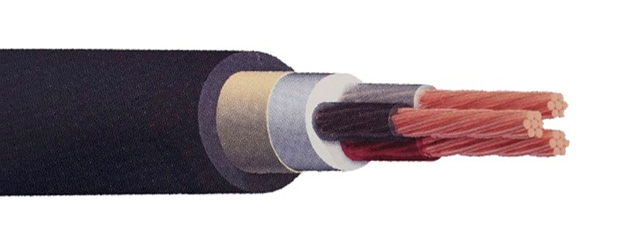

0.6/1㎸ Polyethylene Insulated PVC Cable (CV)
Usa
It is used in power circuits of 0.6/1㎸ and is widely used in our lives as a cable with excellent electrical, physical, and chemical properties. It is mainly used in homes, commercial facilities and factory facilities.
Applicable Standards
Standard specifications of YUJINTECHNO
2개연 Duplex (DV-2R) KS C : 3315
| Nominal Sectional Area (㎟) |
No. of Strands/Diameter (No./㎜) |
Outer Diameter (㎜) |
Insulation Thickness (㎜) |
Sheath Thickness (㎜) |
Overall Diameter (㎜) |
Insulation Resistance (Ω/㎞) |
Test Voltage( (㎸/1min) |
Approx. Weight (㎏/㎞) |
Standard Length (m) |
|---|---|---|---|---|---|---|---|---|---|
| 1.5 | 7/0.53 | 1.59 | 0.7 | 1.4 | 6.3 | 12.1 | 3.5 | 60 | 300 |
| 2.5 | 7/0.67 | 2.01 | 0.7 | 1.4 | 6.7 | 7.41 | 3.5 | 75 | 300 |
| 4 | 7/0.85 | 2.55 | 0.7 | 1.4 | 7.2 | 4.61 | 3.5 | 75 | 300 |
| 6 | 7/1.04 | 3.12 | 0.7 | 1.4 | 7.8 | 3.08 | 3.5 | 115 | 300 |
| 10 | 7/1.35 | 4.05 | 0.7 | 1.4 | 9.4 | 1.83 | 3.5 | 160 | 300 |
| 16 | C.C | 4.7 | 0.7 | 1.4 | 10 | 1.15 | 3.5 | 220 | 300 |
| 25 | C.C | 5.9 | 0.9 | 1.4 | 12 | 0.727 | 3.5 | 320 | 300 |
| 35 | C.C | 6.9 | 0.9 | 1.4 | 13 | 0.524 | 3.5 | 420 | 300 |
| 50 | C.C | 8.1 | 1.0 | 1.4 | 14.5 | 0.387 | 3.5 | 565 | 300 |
| 70 | C.C | 9.8 | 1.1 | 1.4 | 16 | 0.268 | 3.5 | 750 | 300 |
| 95 | C.C | 11.4 | 1.1 | 1.5 | 18.5 | 0.193 | 3.5 | 1005 | 300 |
| 120 | C.C | 12.9 | 1.2 | 1.5 | 20 | 0.153 | 3.5 | 1260 | 300 |
| 150 | C.C | 14.4 | 1.4 | 1.6 | 22 | 0.124 | 3.5 | 1560 | 300 |
| 185 | C.C | 15.9 | 1.6 | 1.6 | 24 | 0.091 | 3.5 | 1935 | 200 |
| 240 | C.C | 18.3 | 1.7 | 1.7 | 27 | 0.0754 | 3.5 | 2455 | 200 |
| 300 | C.C | 20.5 | 1.8 | 1.8 | 30 | 0.0601 | 3.5 | 3065 | 200 |
| 400 | C.C | 23.2 | 2.0 | 1.9 | 34 | 0.0470 | 3.5 | 3995 | 150 |
| 500 | C.C | 26.4 | 2.2 | 2.0 | 37 | 0.0366 | 3.5 | 4840 | 150 |
| 630 | C.C | 30.2 | 2.4 | 2.2 | 42 | 0.283 | 3.5 | 6540 | 150 |
PVC insulated wire (UL Style No. 1007)
Usa
It is used for internal wiring of electrical and electronic devices.
Applicable Standards
Standard specifications of YUJINTECHNO
| Conductor | Insulator | Minimum Conductor Resistance (Ω/㎞) |
Minimum Insulation Resistance (㏁/㎞) |
Dielectric Withstanding Voltage (V/1min) |
Length (m) |
|||
|---|---|---|---|---|---|---|---|---|
| Size | composition (No./㎜) |
Outer Diameter (㎜) |
Thickness (㎜) |
Outer Diameter (㎜) |
||||
| 30 | 7/0.102 | 0.31 | 0.42 | 1.14 | 381.0 | 10 | 2000 | 2000(610) |
| 28 | 7/0.127 | 0.38 | 0.42 | 1.21 | 239.0 | 10 | 2000 | 2000(610) |
| 26 | 7/0.160 | 0.48 | 0.42 | 1.32 | 150.0 | 10 | 2000 | 2000(610) |
| 24 | 11/0.160 | 0.61 | 0.42 | 1.45 | 94.2 | 10 | 2000 | 2000(610) |
| 22 | 17/0.160 | 0.76 | 0.42 | 1.60 | 59.4 | 10 | 2000 | 2000(610) |
| 20 | 26/0.160 | 0.95 | 0.42 | 1.78 | 36.7 | 10 | 2000 | 2000(610) |
| 18 | 41/0.160 | 1.17 | 0.42 | 2.04 | 23.2 | 10 | 2000 | 2000(610) |
| 16 | 26/0.254 | 1.49 | 0.42 | 2.38 | 14.6 | 10 | 2000 | 2000(610) |
PVC insulated wire (UL Style No. 1007)
Usa
It is used for internal wiring of electrical and electronic devices.
Applicable Standards
Standard specifications of YUJINTECHNO
| Conductor | Insulator | Minimum Conductor Resistance (Ω/㎞) |
Minimum Insulation Resistance (㏁/㎞) |
Dielectric Withstanding Voltage (V/1min) |
Length (m) |
|||
|---|---|---|---|---|---|---|---|---|
| Size | Construction (No./㎜) |
Outer Diameter (㎜) |
Thickness (㎜) |
Outer Diameter (㎜) |
||||
| 26 | 7/0.160 | 0.48 | 0.83 | 2.11 | 150.00 | 15 | 2000 | 2000(610) |
| 24 | 11/0.160 | 0.61 | 0.83 | 2.23 | 94.20 | 15 | 2000 | 2000(610) |
| 22 | 17/0.160 | 0.76 | 0.83 | 2.40 | 59.40 | 15 | 2000 | 2000(610) |
| 20 | 26/0.160 | 0.95 | 0.83 | 2.60 | 36.70 | 15 | 2000 | 2000(610) |
| 18 | 41/0.160 | 1.17 | 0.83 | 2.80 | 23.20 | 15 | 2000 | 2000(610) |
| 16 | 26/0.254 | 1.49 | 0.83 | 3.13 | 14.60 | 15 | 2000 | 2000(610) |
| 14 | 41/0.254 | 1.88 | 0.83 | 3.52 | 8.96 | 15 | 2000 | 2000(610) |
| 12 | 65/0.254 | 2.36 | 0.83 | 4.10 | 5.64 | 15 | 2000 | 2000(610) |
| 10 | 66/0.320 | 3.00 | 0.83 | 4.94 | 3.55 | 15 | 2000 | 2000(610) |
COPYRIGHT YUJIN TECHNO. ALL RIGHS RESERVED.
