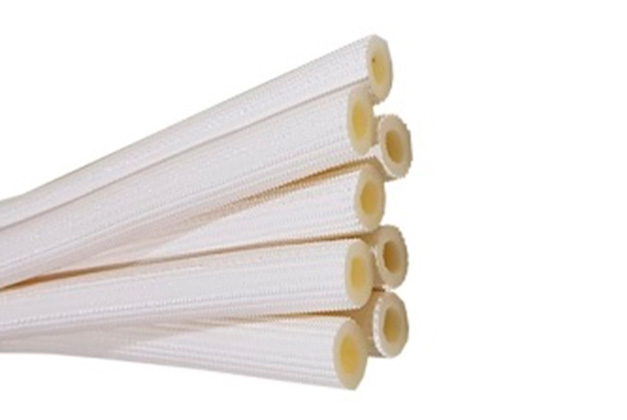

Lagging Materials
Use
It is used for reducing heat loss from air conditioner. It also serves to protect the copper tube from external impact.
| Types | Inner diameter(Ø) | Thickness(T) | Length(M) |
|---|---|---|---|
| Cooling Only | 12 | 7 | 4 |
| 16 | 7 | 4 | |
| 20 | 7 | 4 | |
| 22 | 7 | 4 | |
| 30 | 7 | 4 | |
| 36 | 7 | 4 | |
| Heat Pump | 12 | 8 | 4 |
| 14 | 8 | 4 | |
| 16 | 8 | 4 | |
| 20 | 8 | 4 | |
| 27 | 8 | 4 | |
| 14 | 8 | 5 | |
| 16 | 8 | 5 | |
| 20 | 8 | 5 | |
| 22 | 8 | 5 |

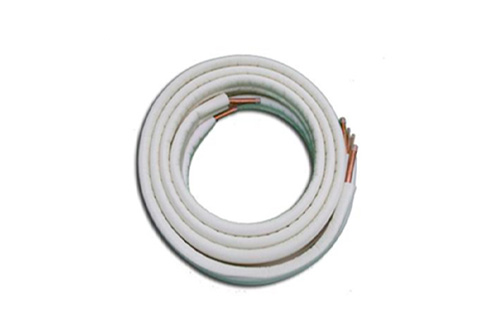

Copper Pipe Aluminum Copper Pipe (Eutectic Diffusion Bonding)
Use
Cu Tube and Al+Cu Tube serve as a passage for refrigerant to move between the indoor and outdoor units.
| NO | Inner diameter(Ø) | Thickness(T) | Length(M) |
|---|---|---|---|
| 1 | 6.35 | 1.0 | 5(AL+CU) |
| 2 | 9.52 | 1.0 | 5(AL+CU) |
| 3 | 12.7 | 1.2 | 5(AL+CU) |
| 4 | 15.88 | 1.5 | 5(AL+CU) |
| 5 | 6.35 | 1.0 | 8(AL+CU) |
| 6 | 9.52 | 1.0 | 8(AL+CU) |
| 7 | 12.7 | 1.2 | 8(AL+CU) |
| 8 | 15.88 | 1.5 | 8(AL+CU) |

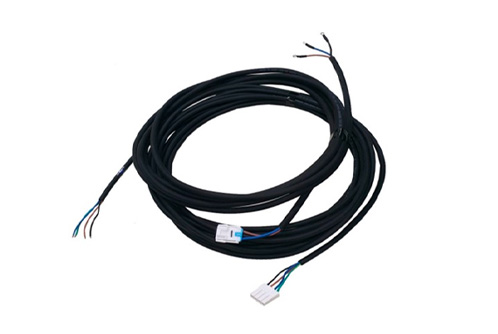

Processed Rubber Wire
Use
This rubber wire used in air conditioner installation is KC certified, and produced and processed directly by the wire division.

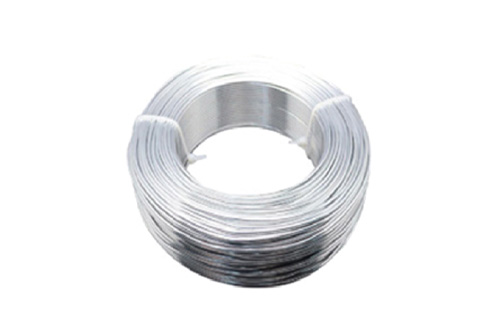

Aluminium Tube
Use
It is an aluminum pipe used in the assembly and production of various home appliances such as refrigerators and air conditioners, and can be processed according to the intended use.

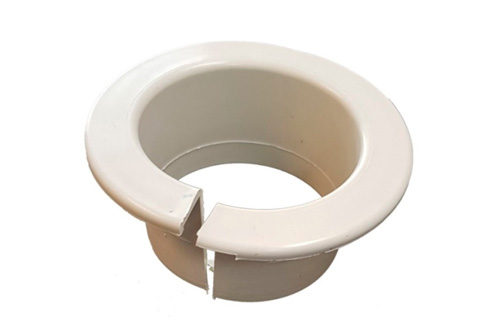

Wall Cap
Use
It is used for finishing pipe holes when installing an air conditioner, and is more convenient and easier than using silicone.

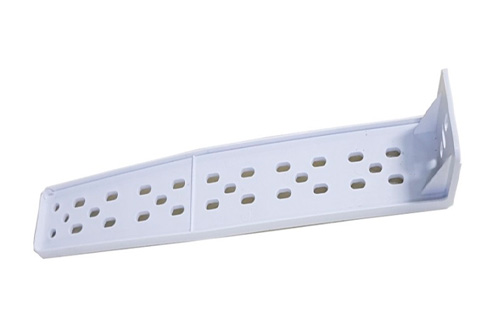

Bracket Fix
Use
It secures air conditioner body to the wall to prevent safety accidents such as tilting or shaking.

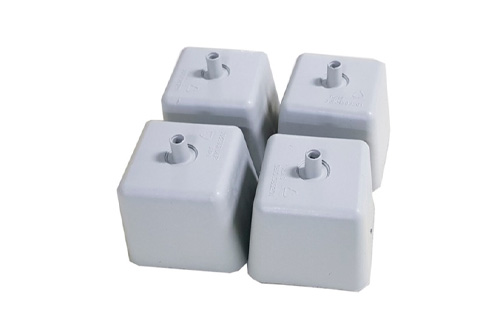

Mount Base
Use
It plays a role in adjusting the height of the outdoor unit of the air conditioner and prevents noise and vibration caused by the outdoor unit, and prevents fire caused by electrical phenomena of fine dust.

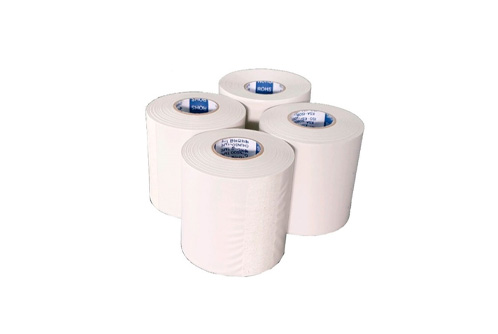

Finishing Tape
Use
It is used after installing air conditioner pipes, has good elasticity and does not break easily, and is available in sizes from 14 to 45 meters.
